HII Series Cold Chamber Die Casting Machine(180-900T)
Engineered for peak performance, the HII Series merges YIZUMI’s expertise with human-centric innovation. The intuitive HMI of this cold chamber die casting machine enhances operational efficiency, while advanced hydraulics shorten cycle times and cut energy use. Precision-cast components benefit from reduced pressure build-up, high-speed acceleration, and global-standard repeatability.
Available with die locking forces from 180T to 900T.
Available with die locking forces from 180T to 900T.
Safe and Reliable
Precise and Stable
Efficient and Durable
Wide Range of Application

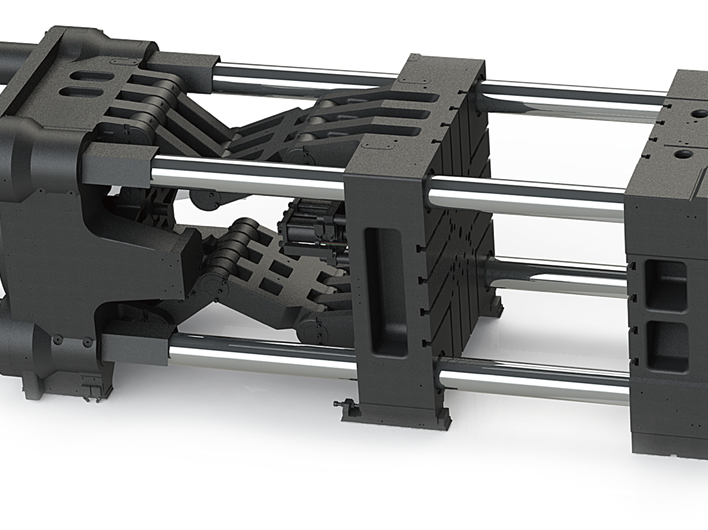

Clamping Unit
Re-Designed high rigidity
- Further increased platen rigidity protects the die casting tools during operation;
- A new design based on FEM analysis offers an even distribution of force by minimizing platen bending.
- A new design based on FEM analysis offers an even distribution of force by minimizing platen bending.
Designed for extended service life
- Re-designed toggle geometry based on detailed movement simulations provides improved platen movement characteristics;
- Which extends toggle service life and further decreases closing and opening time.
- Which extends toggle service life and further decreases closing and opening time.
Optimized Toggle Lubrication Design
Improved and centrally located toggle system, lubrication, and grease system ease the operation of the machine so that an extended machine service life is ensured.

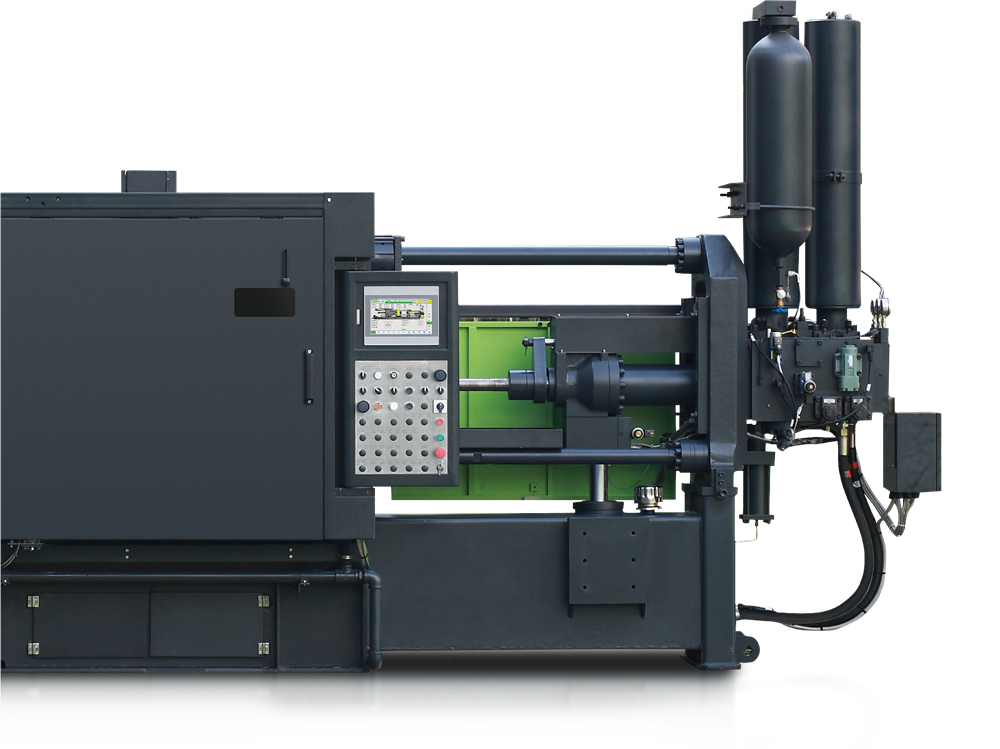

Injection Unit
Enhanced shot performance
- With its optimized hydraulic system, the HII system offers a high injection acceleration of up to 50G. In combination with its high-capacity P/Q2 performance, the HII die casting machine is built to provide high casting quality with even the most difficult parts;
- The max. dry injection speed ≥8m/s meets the customer`s high process requirements.
- The max. dry injection speed ≥8m/s meets the customer`s high process requirements.
Higher performance injection hydraulic system
- A new integrated injection hydraulic adds injection performance to improve casting process stability while reducing components and increasing machine availability;
- Precisely triggering the fast-filling phase is critical for many die casting applications. The HII provides a high standard of precision to switchover to the cavity filling phase. The variation is ≤6mm. A repeatability of max +/-2.5mm, which satisfies the highest requirements.
- Precisely triggering the fast-filling phase is critical for many die casting applications. The HII provides a high standard of precision to switchover to the cavity filling phase. The variation is ≤6mm. A repeatability of max +/-2.5mm, which satisfies the highest requirements.

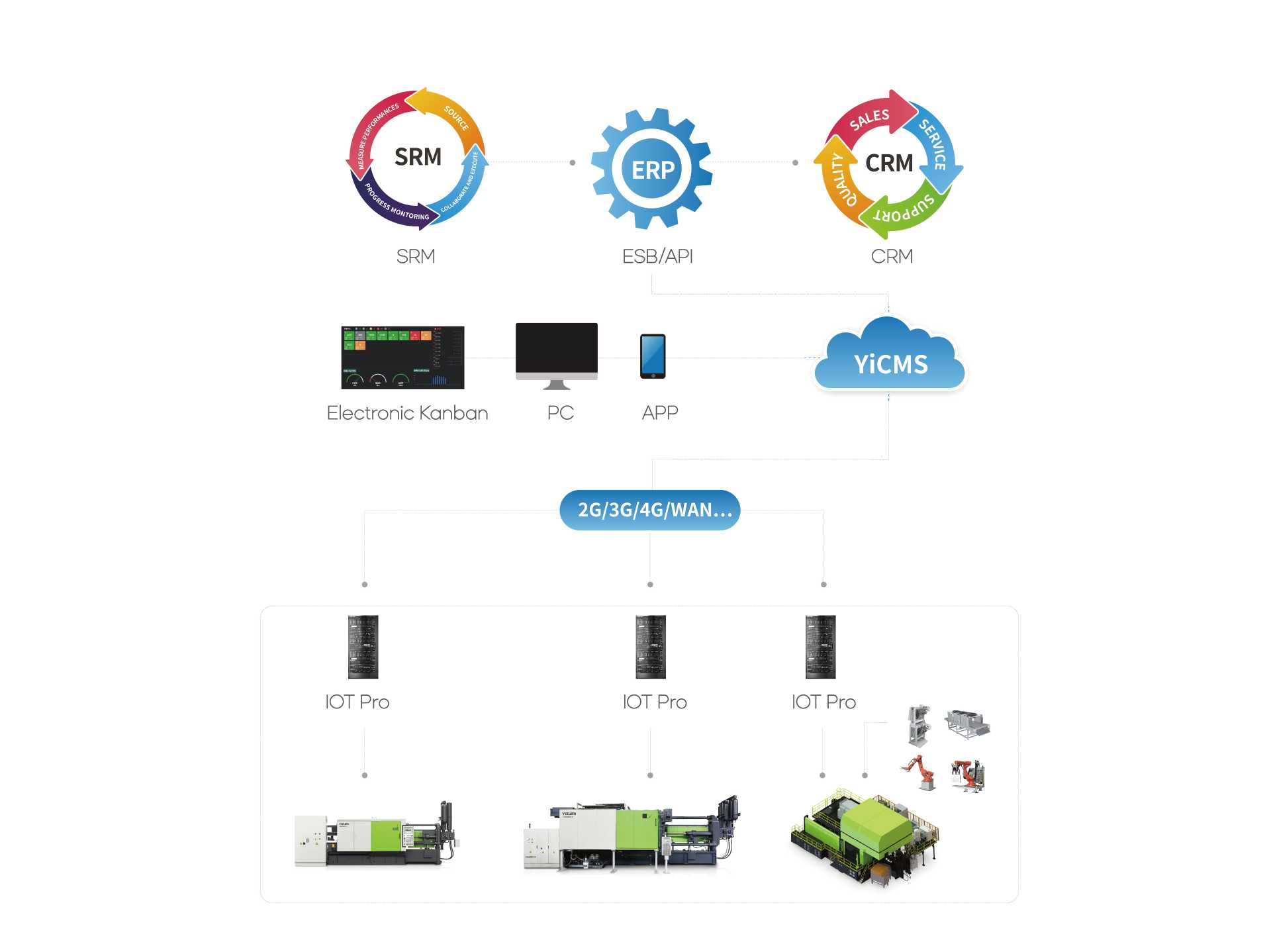

YIZUMI Condition Monitor System (Optional)
Machine Monitor
- The running status is viewed in real time
- Dynamic calculation of operational metrics
- Alarm information is collected in real time
- Timely warning of abnormal downtime
- Dynamic calculation of operational metrics
- Alarm information is collected in real time
- Timely warning of abnormal downtime
Process Monitor
- Process parameters are collected in real time
- Timely warning of parameter anomalies
- Historical processing parameters are traced
- Process parameters SPC control
- Timely warning of parameter anomalies
- Historical processing parameters are traced
- Process parameters SPC control
Production Monitor
- Production progress monitoring
- Quality statistical analysis
- Hourly production statistics
- KPI exception alert
- Quality statistical analysis
- Hourly production statistics
- KPI exception alert
Fast and Precise Hydraulic Drive System
- The third-generation servo drive offers even Less noise emissions if compared to the previous design. System noise reduction of about 20%;
- Stabilizing power surges automatically for up to 5 mins, this system offers great operational stability even with fluctuating main power;
- This efficient servo pump system ensures the lowest possible oil temperatures, further enhancing operational efficiency;
- Reduced system response time improves reaction time and the highest operational performance.
- Stabilizing power surges automatically for up to 5 mins, this system offers great operational stability even with fluctuating main power;
- This efficient servo pump system ensures the lowest possible oil temperatures, further enhancing operational efficiency;
- Reduced system response time improves reaction time and the highest operational performance.

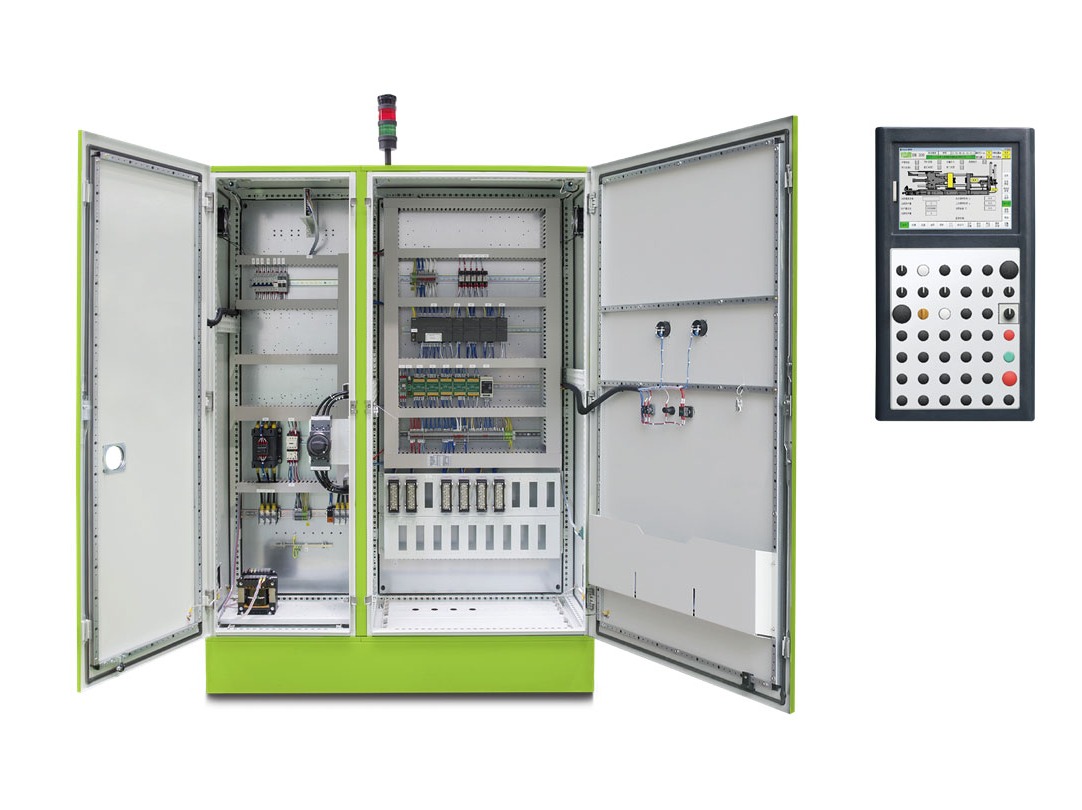

International Standard Electrical Control System
- The integrated operating panel is easy to use and saves time for the operator as well as the casting process engineers;
- Further optimized layout and structure of our HMI increases flexibility in managing machine functions via a large touchscreen;
- Intuitive and easy-to-understand maintenance functions, such as maintenance tips, comprehensive alarm messages, and operation guidance, increase operational efficiency.
- Further optimized layout and structure of our HMI increases flexibility in managing machine functions via a large touchscreen;
- Intuitive and easy-to-understand maintenance functions, such as maintenance tips, comprehensive alarm messages, and operation guidance, increase operational efficiency.
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Automation
HII-S Series High-end Cold Chamber Die Casting Machine(1000-9000T)
Engineered for peak performance, this Cold Chamber Die Casting Machine HII-S Series merges YIZUMI’s expertise with human-centric innovation. Its intuitive HMI enhances operational efficiency, while advanced hydraulics shorten cycle times and cut energy use. Precision-cast components benefit from reduced pressure build-up, high-speed acceleration, and global-standard repeatability. Available with die locking forces from 1000T to 9000T.
HII-S Series High-end Cold Chamber Die Casting Machine(180-900T)
Engineered for peak performance, the HII-S Series High-end Cold Chamber Die Casting Machine merges YIZUMI’s expertise with human-centric innovation. Its intuitive HMI enhances operational efficiency, while advanced hydraulics shorten cycle times and cut energy use. Precision-cast components benefit from reduced pressure build-up, high-speed acceleration, and global-standard repeatability. Available with die locking forces from 180T to 900T.
LEAP Series Die Casting Machine
Integrating global engineering innovation with YIZUMI’s R&D excellence, the LEAP Series Die Casting Machine ensures supreme casting precision and reproducibility. Advanced hydraulic systems and high-performance controls guarantee rapid response and process stability. Intuitive HMI maximizes efficiency while minimizing downtime. Optimized energy use reduces operational costs. Available with die locking forces from 380T to 5000T.
Highly Integrated Die-Casting Cells
It is possible to achieve plug-and-play and rapid adjusting of peripheral devices. HMI smoothly incorporates several types of information from auxiliary equipment. Die-casting process is visible and traceable due to the centralized control of digital island.
Re-designed Clamping System
Accurate control of any position mold opening. The repeatability accuracy of the mold opening position is up to ±1mm. It also offers clamping force detection and automatic mold adjustment features.
Material Loading/Unloading Automation
High levels of automation and flexibility
Grinding Automation
Robotic grinding and deburring can guarantee the accuracy and reliability of product cleaning while lowering the rate of human scrap. Meanwhile, it could prevent the spread of dust and reduces the dangers of environmental pollution and occupational diseases.
Surface Planeness Testing
The visual inspection system software developed by YIZUMI allows you to measure the dimensions of products.
Intelligent Die Casting Cell
YIZUMI Intelligent Die Casting Island focuses on providing a complete set of turnkey solutions for industrial production processes like robotic automated intelligent manufacturing systems, peripheral equipment, and related technical support and services. It meets the fully automated production needs of the die-casting industry and completes the full set of automated production processes such as robot take-out, inlaying, spraying, product cooling, de-slagging, trimming, engraving, conveying, etc. in the die-casting and post-processing related industries, and is suitable for different die-casting production lines.
