High-speed Injection Molding Machine
P Series High-speed Injection Molding Machine
High-speed Injection Molding Machine P Series is the top choice for crafting multi-cavity, thin-wall packaging items, meeting the demands of thin-wall containers and enhanced production efficiency. Yizumi provides tailored turnkey solutions of injection molding machines for diverse clients. Clamping forces range from 2,500 to 5,500 kN.
High Speed
The humanized design of the machine
Wide range of application

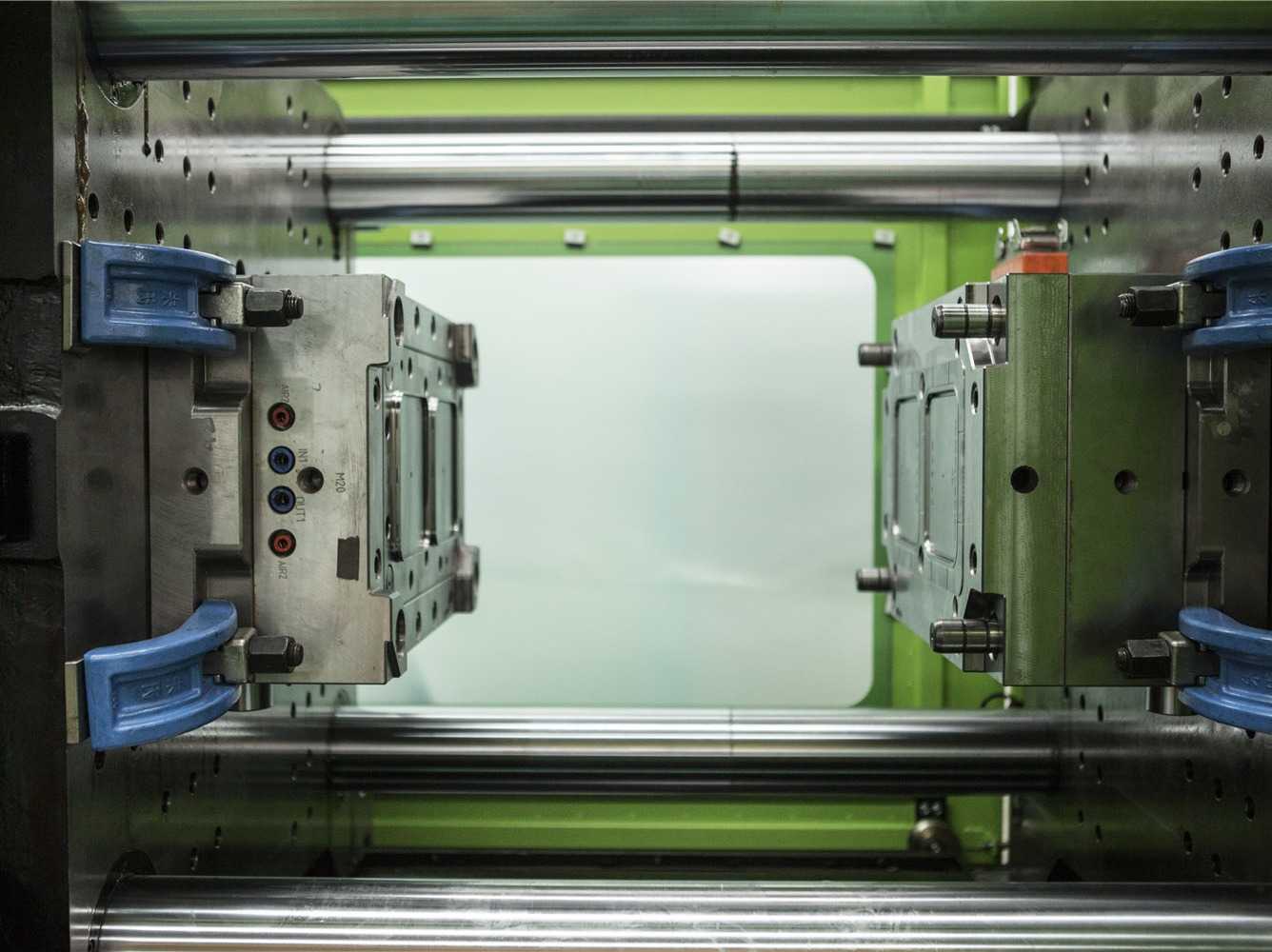

Clamping Unit
Unique Large Beveled Cosshead Toggles Design
A large beveled structure can better transfer force from the tail toggle hole to the center of the platen to minimize the platen deformation, ensure the uniformity of force applied on the platens and mold, extend the service life, and ensure the quality of products.
High-rigid and Low Deformation Platens
- The adoption of reinforced platen design according to the characteristics of thin-walled packaging products.
- With a perfect combination of strength and rigidity, while minimizing the platen deformation, it maintains a flexible and smooth movement.
- With a perfect combination of strength and rigidity, while minimizing the platen deformation, it maintains a flexible and smooth movement.

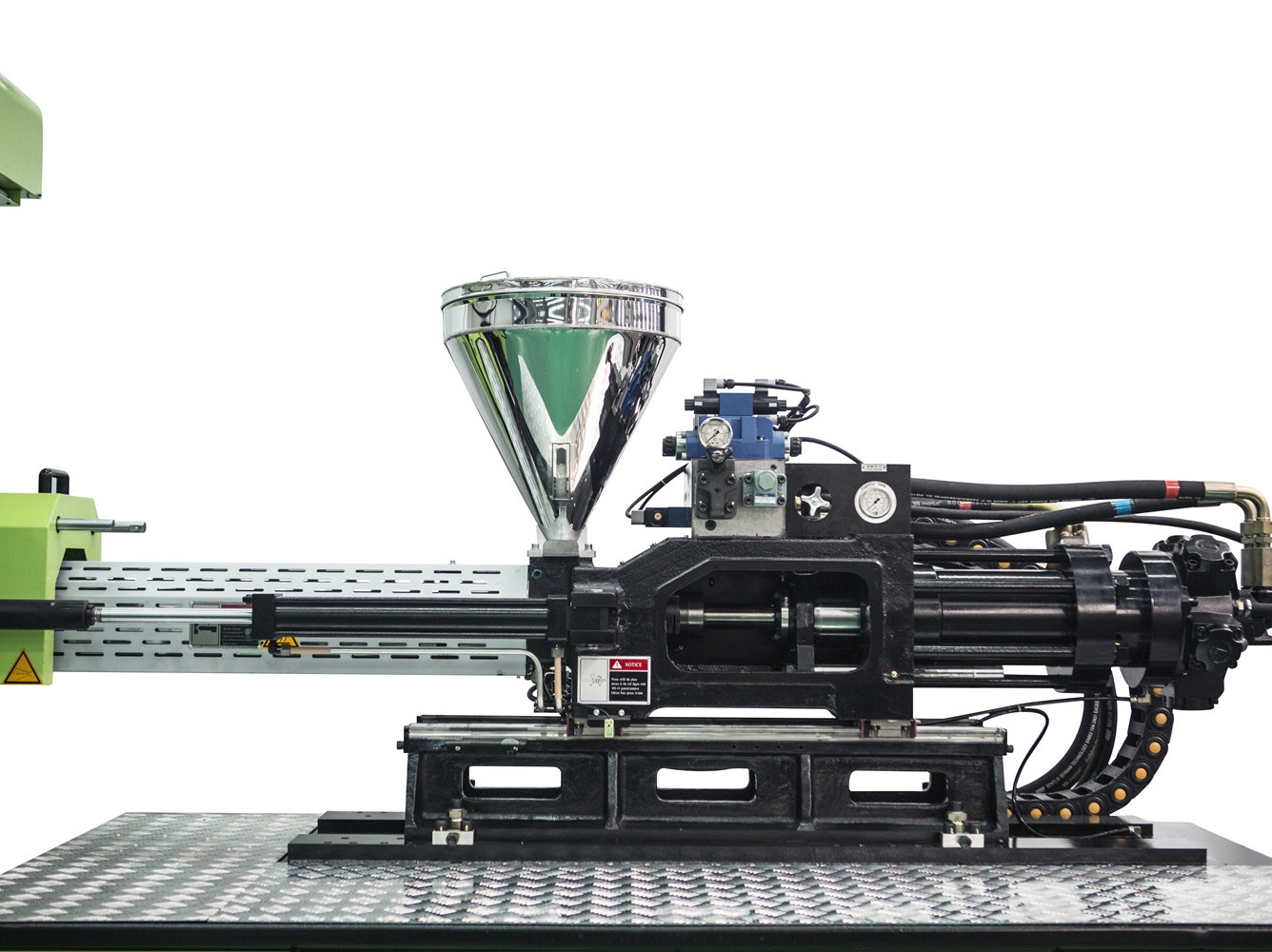

Injection Unit
Horizontal Dual-carriage Design
The adoption of horizontal dual-carriage cylinder design effectively eliminates the turning torque of the injection mechanism and ensures a stable and reliable injection.
High-speed Mold Opening /Closing Proportional Valve
Further reduce the reaction time. Double the repetitive accuracy of mold opening ends and increase the operating speed of mold opening/closing by 15%-20%, suitable for the production of various precision thin-walled products.

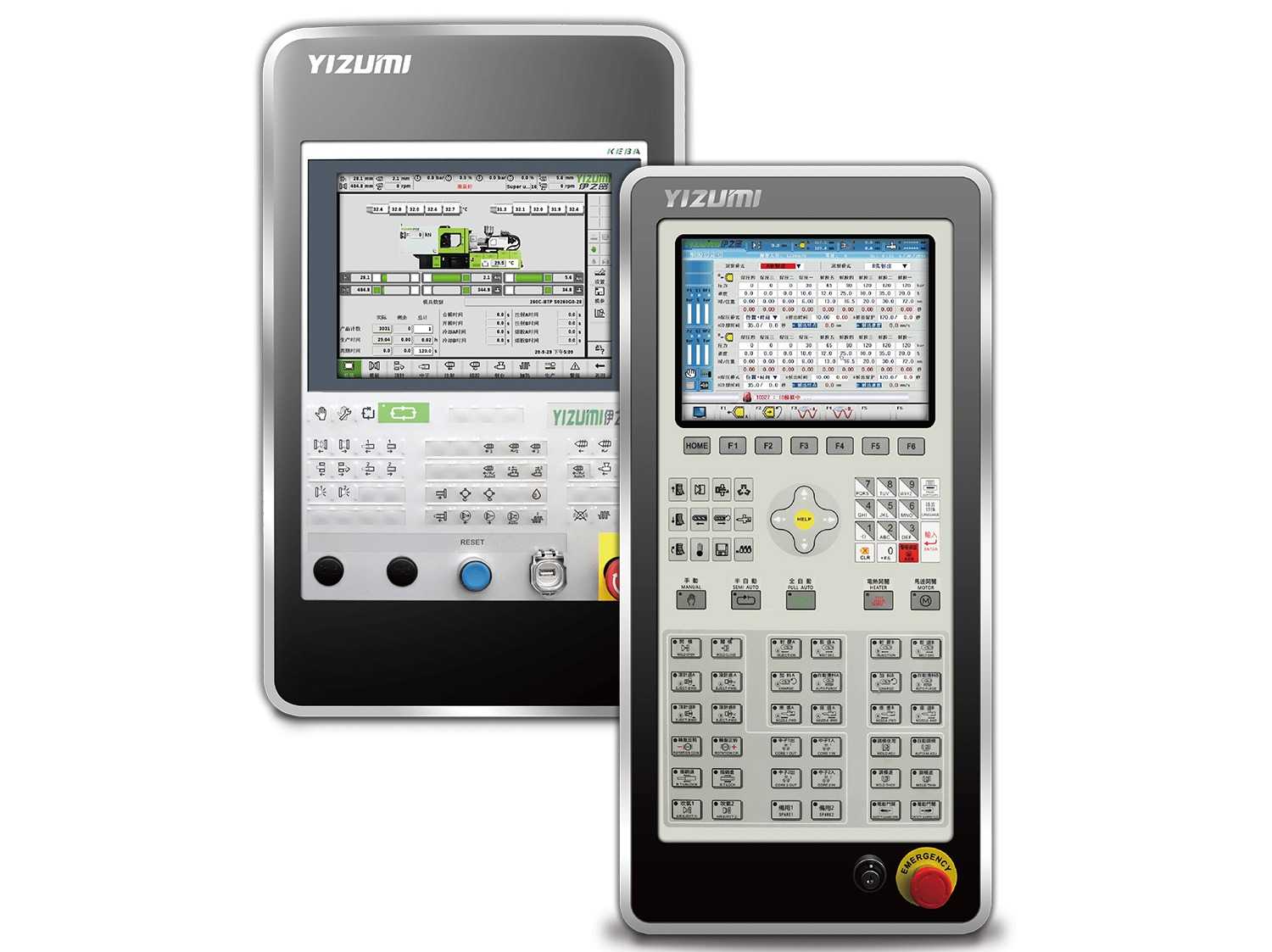

Control System
- Faster processing speed, optimized control rate, and outstanding repetitive accuracy help to achieve more stable product quality.
- Bright, full-color 10-inch touch screen input and easy-to-use operation page.
- Multi-stage injection and plasticizing function pages are easy to use and improve processes accordingly.
- The production management and production monitoring functions can communicate with the peripheral equipment barrier-free.
- Online quality monitoring function and injection molding industry 4.0.
- Bright, full-color 10-inch touch screen input and easy-to-use operation page.
- Multi-stage injection and plasticizing function pages are easy to use and improve processes accordingly.
- The production management and production monitoring functions can communicate with the peripheral equipment barrier-free.
- Online quality monitoring function and injection molding industry 4.0.

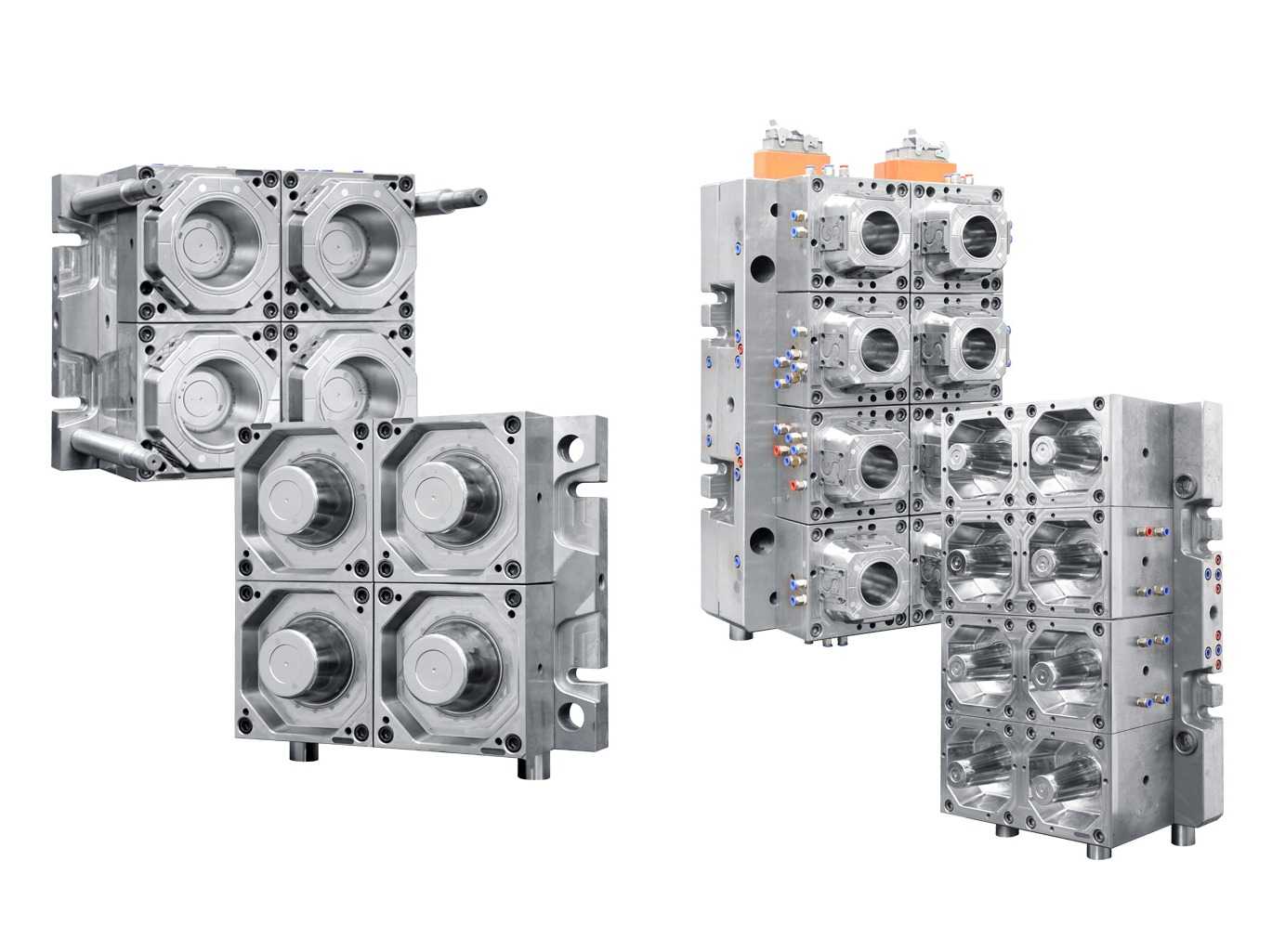

Thin-wall mold
We can offer customized molds for thin-wall injection molding according to customer-specific requirements, to better meet diversified demand.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Processes
A6 Series 3rd Generation Servo Hydraulic General Purpose Injection Molding Machine
To ensure "reliability and stability" in the A6 large tonnage machine family, we've enhanced repeatability to 3‰ for product weight and offer clamping forces of 1,200-18,500 kN.
FF Series Electric Injection Molding Machine
Electric Injection Molding Machine FF Series surpasses traditional machine standards, facilitating seamless automation and intellectualization integration for improved quality consistency and efficiency. Superior in thickness, precision, and complexity, this electric injection molding equipment meets demanding core product needs. Clamping forces range from 900 to 13,800 kN.
Inovance Iventure System
1. Including Inovance controller, servo drive and high-response motor.
2. Communication between the controller and the drive upgrades to digital type. Same brand controller and drive show better performance, faster and more accurate.
3. Quick and stable mold opening, smooth mold closing with no impact, less wear and tear to machine.
4. Mold opening repeatability is within ±0.5mm, with overshoot less than 2.0mm.
5. Deviation of injection end position is less than 0.25mm.
6. Deviation of material feeding position is less than 0.2mm.
7. Temperature overshoot of first-time heating is less than 3℃, within ± 1℃.
Synchronous plasticizing
1. The plasticizing is synchronized with the cooling, mold opening and part picking, shorter cycle time.
2. PAC380K3 and above model are generally equipped with hydraulic synchronous plasticizing function, which shortens the product molding cycle.
Optimized clamping unit
1. The upgraded clamping unit can provide larger clamping force, better facilitating the molding of thin-wall and deep-cavity products.
2. Platen, tie bars and machine frame of better mechanical properties can better improve the rigidity of the whole machine and reduce deformation.
3. The rigidity of overall mold locking is increased by more than 25%.
FoamPro
Developed based on the MuCell process, it can be equipped with aircraft-grade aluminum alloy mold technology, ceramic coating technology, and FLEX?ow servo needle valve runner system to achieve maximum product weight reduction while still performing at its best.
Stack Mold Technology
1. Improved efficiency of 30-80%, estimated according to different production processes.
2. Less demand on equipment and operators, space saving.
3. Effective control of color differences caused by the same injection molding machine.
4. Simultaneous production of different shapes of parts.
5. Automated assembly is easier through uniform shrinkage and deformation after a set of workpieces are produced simultaneously.
FoamPro-Chem
Developed based on the chemical foaming process, it can be equipped with Core-Back precision mold opening and other technologies to achieve maximum product weight reduction while still performing at its best.
Service Process
01
Process/Mold Analyse and Design
- Raw materials selection
- Product design
- Mold flow analysis
- Mold design suggestion
02
Equipment Selection Suggestions
- Product performance
- Product quality
- Ease of use
- Safety requirements
03
Whole Plant Planning Advice
- Planning of production line
- Arrangements for people, machines, and materials according to process flow
- Peripheral automation
- Smart connection
04
Delivery Solutions
- Professional installation and debugging
- On-site operation training
- Molding process training
05
After Sales Solutions
- YFO services
- Preventive maintenance
- Device upgrade

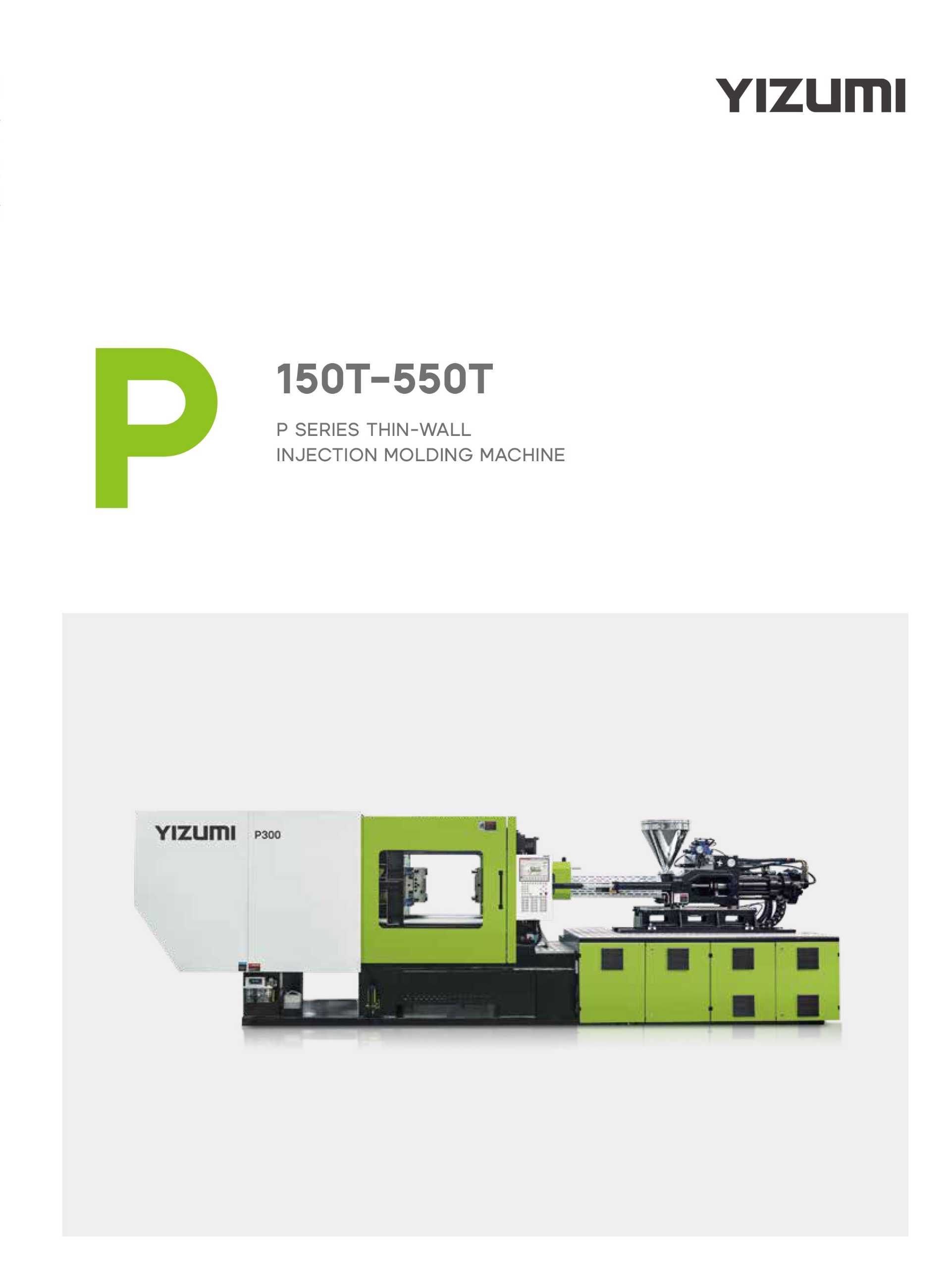

Download
