D1M Series Two-platen Multi-component Injection Molding Machine
YIZUMI MultiPro offers multi-component molding with advanced technology, simplifying production with one step. Leading in this field, YIZUMI provides high-end injection molding machine solutions. Clamping forces: 5,000-24,000 kN.
Stability
Customization
Machine Introduction Video

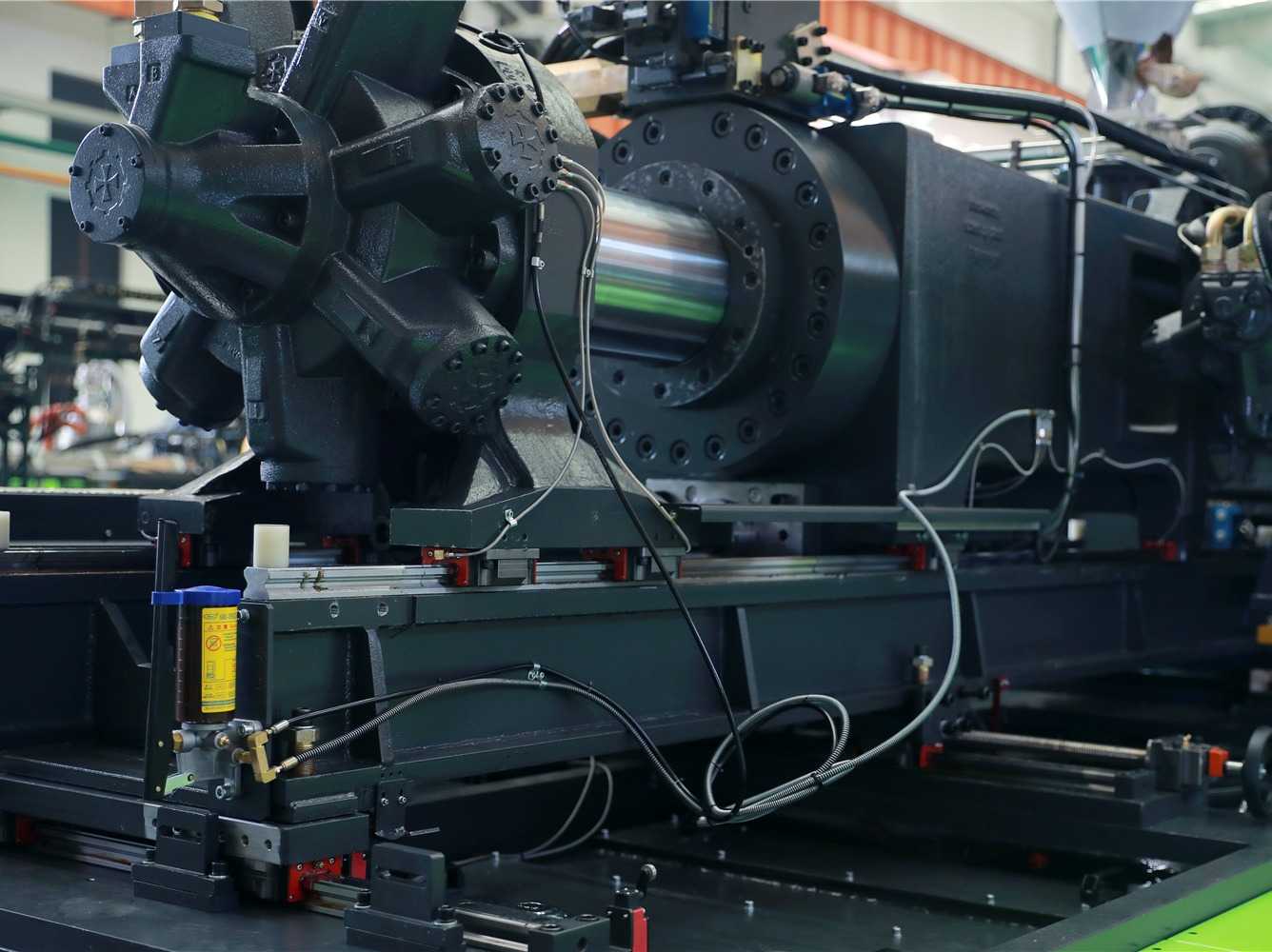

Clamping Unit

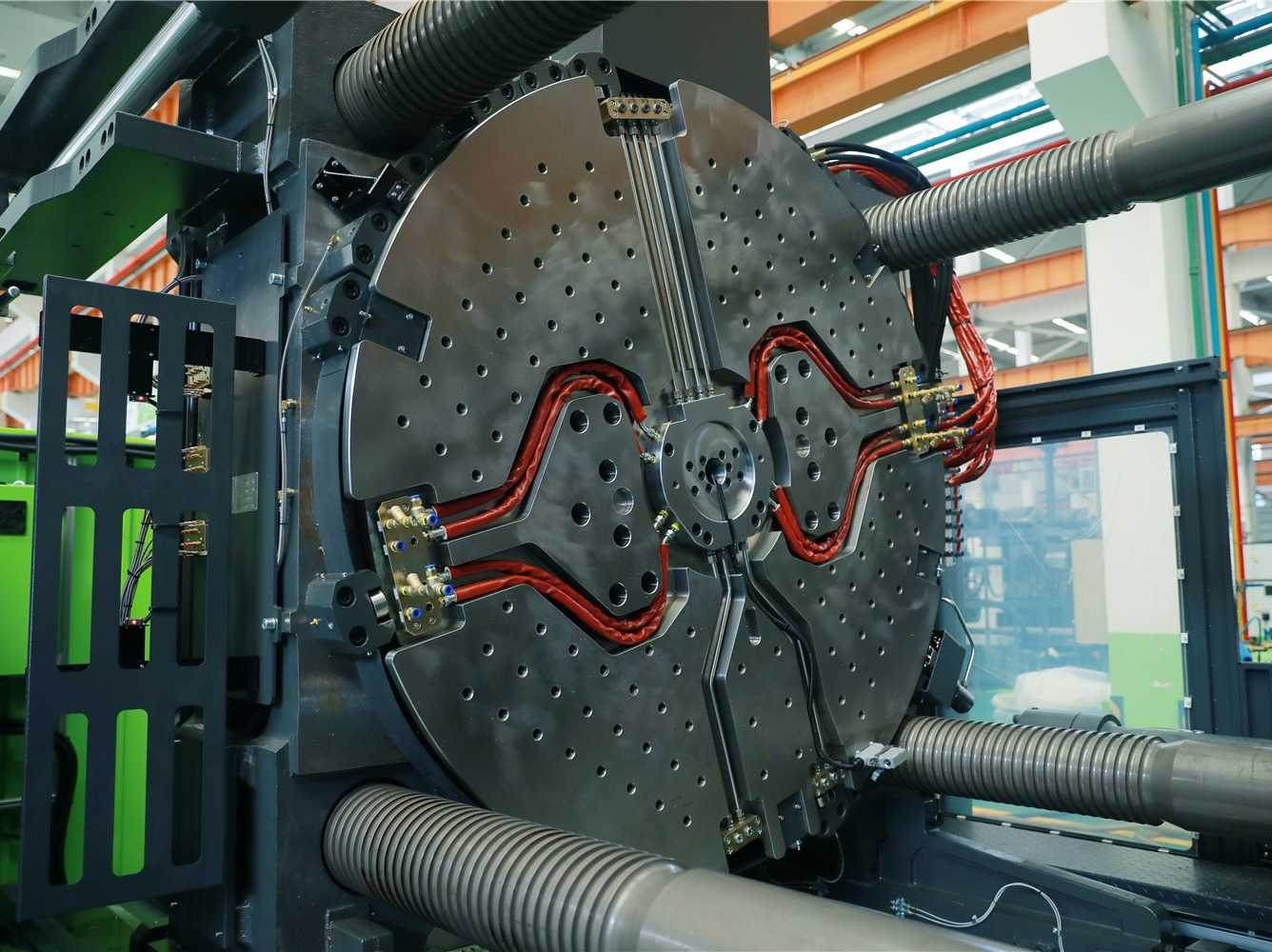

Integrated turntable
- Integrated design, high rigidity, large bearing capacity, and compact structure;
- The turntable is standard with a servo motor with high precision and rotation speed. It can be equipped with multiple groups of water-oil-gas diversion systems at a high flow rate.
- The turntable is standard with a servo motor with high precision and rotation speed. It can be equipped with multiple groups of water-oil-gas diversion systems at a high flow rate.
Digital closed-loop positioning control technology (DCPC)
Turntable driven by servo motor is controlled by DCPC technology, with high rotating speed, smooth operation without impact, accurate positioning, and repeatability up to ±0.005°.
Automatic flow-distribution shaft system
The turntable is equipped with a German automatic flow distribution shaft system, with a double-layer structure for oil-water separation. It offers centralized management for oil, water, and gas. Multi-angle rotation of the station is also available by 0°, 90°,120°, 180°,240°, or 360°, with no wear and no tangling for pipeline, wider application.
Injection Unit
High injection repeatability
Based on European single-cylinder injection molding technology, it brings low injection inertia and high leak-proof performance of cylinder;
Also combined with high mixing anti-stick screw and precise temperature control, injection stability is further enhanced, making the repeatability of product weight up to 3‰.
Also combined with high mixing anti-stick screw and precise temperature control, injection stability is further enhanced, making the repeatability of product weight up to 3‰.
Proportional valve-controlled back pressure
Precise control to enhance injection stability and provide necessary conditions for an excellent plasticizing effect.
New-generation PID temperature control
With adaptive PID temperature control, the static temperature control accuracy reaches up to ±0.5℃

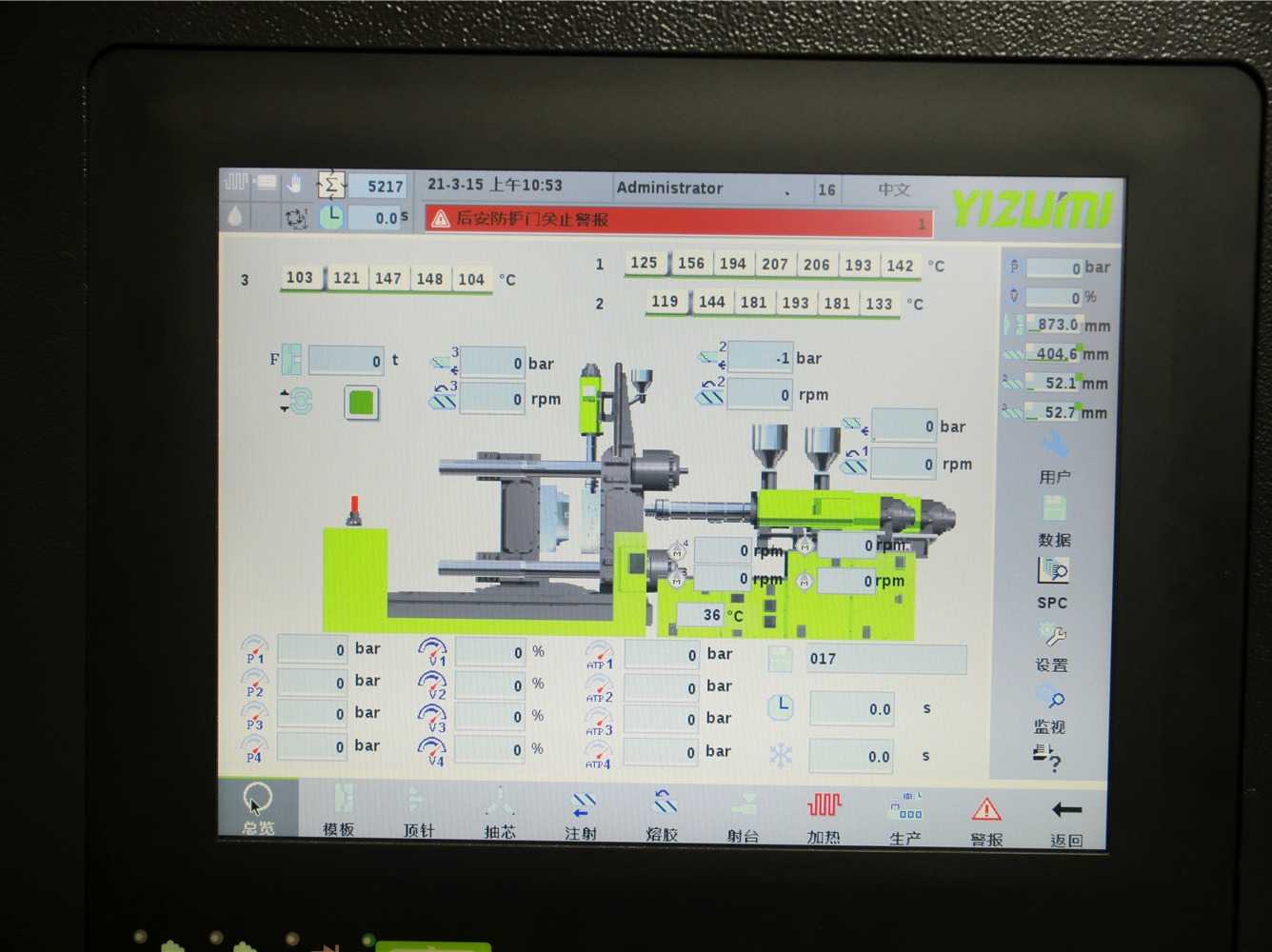

Precise control, reliable and stable, user-friendly design
The Austrian KEBA controller is standard for a two-platen multi-component injection molding machine. Controller design is reliable, stable, safe, and user-friendly, applicable to various multi-component molding solutions, improving customer experience.

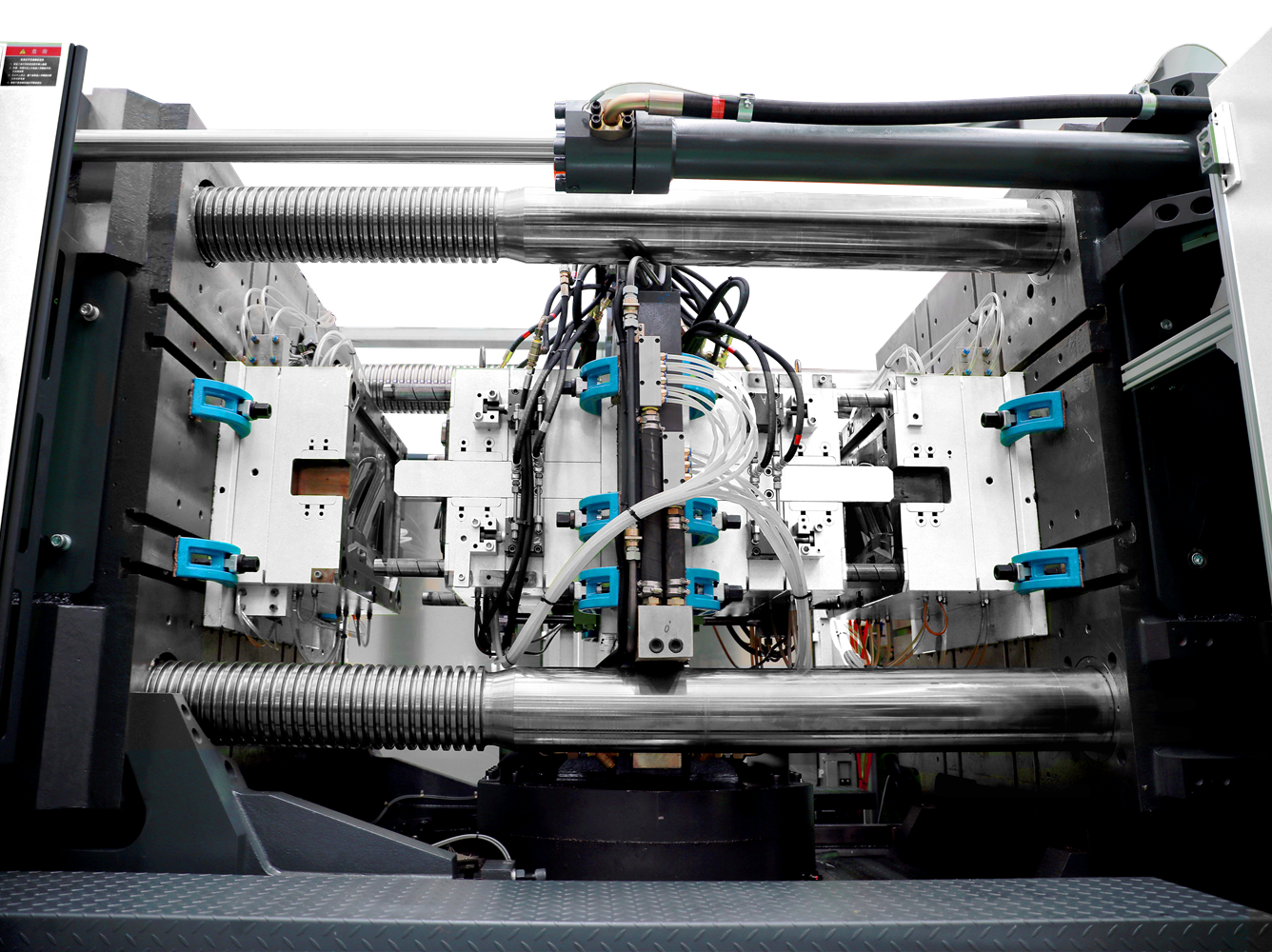

Horizontal turntable two-way injection molding
Horizontal turntable is suitable for the molding of long or large two-color products. It can help machines largely reduce clamping force compared to a vertical turntable. Also, horizontal turntable can cooperate with the third and the fourth injection units（W type, L type, V type, etc.) in multi-component molding, providing a more cost-effective solution.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Automation
CG-P Series High-end Multi-component Injection Molding Machine
The YIZUMI C Series multi-component injection molding machine is designed for enhanced quality of life and individualization. Focused on stability and customization, the Custom Series aims to bring vibrancy and diversity to everyday life. Clamping forces range from 1,600 to 8,000 kN.
D1 Series Two-platen Injection Molding Machine
YIZUMI Advanced Two-platen Injection Molding Machine D1 Series: German tech, expertise in large-tonnage two-platen machines. Innovating to set a benchmark. Clamping forces: 5,500-40,000 kN.

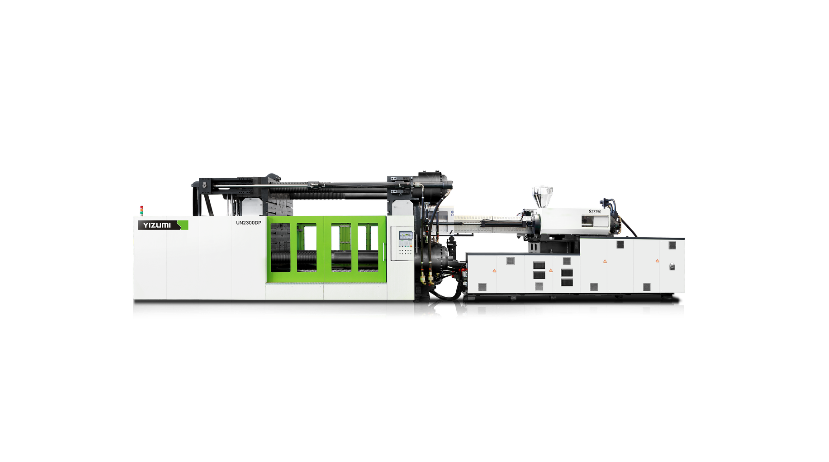

DP Series Two-platen Injection Molding Machine
